Blickle

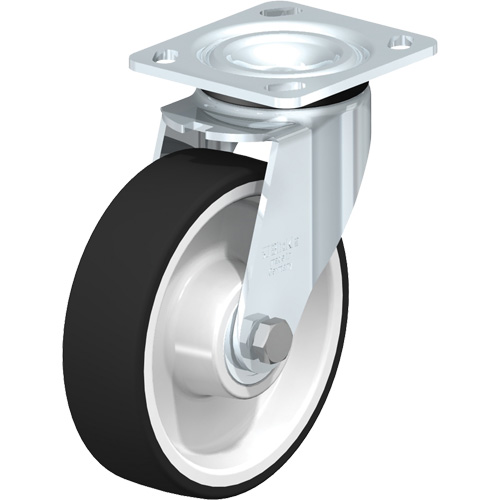

Heavy-Duty Kingpinless Caster, Swivel, 6-5/16" (160.3375 mm), Thermoplastic Polyurethane, 1210 lbs. (550 kg.)

Model: ML690

Mfr. No.: LEH-POTH 160K-14

See Product Details

  • Blickle LEH-POTH 160K-14 Heavy-Duty Kingpinless Caster, Swivel, 6-5/16" (160.3375 mm), Thermoplastic Polyurethane, 1210 lbs. (550 kg.)

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$165.00 / Each

Ships in 3-6 days

Shipping times are based on information available at the time of order and are subject to change.

FREE delivery on all orders over $150 when shipping to an eligible location.

Buy More, Save More

Quantity Price per
2-3 $143.55
4-5 $128.70
6 or more $117.15

Related Products

Description

  • 1/2" zerk axle and lock nut
  • 5/16" diameter thrust raceway; 5/16" diameter kingpin raceway
  • Raceway protected from dust and dirt
  • Corrosion resistant bright zinc finish
  • Brake type: Total locking ; Excellent for:
  • Abusive conditions
  • Tow lines
  • Industrial platform trucks
  • Most hardworking industrial functions
  • Economical handling of heavy loads where severe abuse is present

Specifications

Wheel Diameter

6-5/16" (160.3375 mm)

Capacity

1210 lbs. (550 kg.)

Wheel Material

Thermoplastic Polyurethane

Caster Type

Swivel

Frame Material

Steel

Tread Width

1-3/4" (44.5 mm)

Bolt Hole Spacing

2-5/8" x 3-5/8" (67 mm x 92 mm) to 3" x 3" (76 mm x 76 mm)

Bolt Hole Size

3/8" (9.52 mm)

Plate Size

4" x 4-1/2" (102 mm x 114 mm)

Bearing Type

Roller

Swivel Radius

4.875"

Overall Height

7.5"

UPC

620655073060
