PTC Instruments

Rockwell C Scale Hardness Tester

Model: HC062

Mfr. No.: 415C

See Product Details

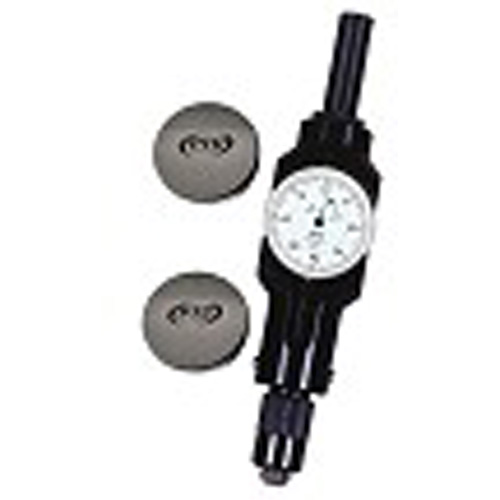

  • PTC Instruments 415C Rockwell C Scale Hardness Tester

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$2,675.93 / Each

Ships in 2-3 weeks

Shipping times are based on information available at the time of order and are subject to change.

FREE delivery on all orders over $150 when shipping to an eligible location.

Related Products

Description

  • Economical way of grading and checking various metals in equivalent Rockwell C range of 20HRC to 67HRC
  • Completely redesigned chassis made from aerospace aluminum houses a high quality displacement gauge
  • Minimum sample thickness is 0.025" (6.35 mm) for most materials
  • Shipped with factory-set preload, calibrated and ready to use
  • Diamond tip indenter has been polished to a spherical radius of 0.004" and ground to an included angle of 60°
  • Upper end (the shank) is the gripping area for insertion into a milling machine, drill press, or lathe
  • Lower end is the load cell that extends up into the body of the hardness tester and houses a centreless ground precision spring which preloads the hardened steel indenter
  • Direct reading analog dial is accurate to ±1.5 points
  • The total force required to move the indenter through its full travel of 0.025" (6.35 mm) is 85 lbs. (38.56 kg)
  • Includes: Rockwell C scale hardness tester, Test blocks (high and low range test blocks), Conversion chart, Carrying case

Specifications

Display Type

Analogue

Indicator Diameter

1.6"

Accuracy

± 1.5 points

Dimensions

6.75 x 1.06" (17.1 x 2.7 cm)

Weight

12 oz. (340 g)
