Tenaquip

NMT Systems

Weld-On Hinge, 0.453" Dia. x 2.756" L, Stainless Steel w/Fixed Stainless Steel Pin

Model: TTV258

Mfr. No.: SS70SS

See Product Details

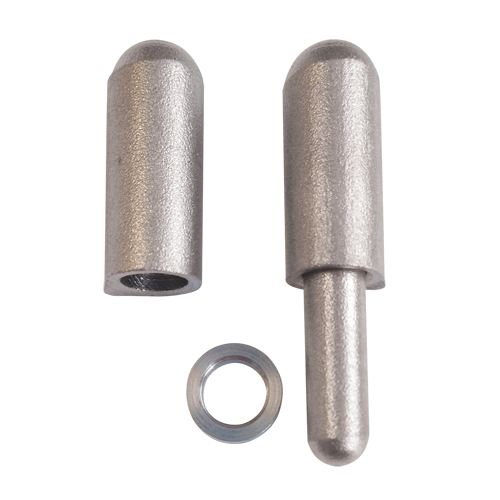

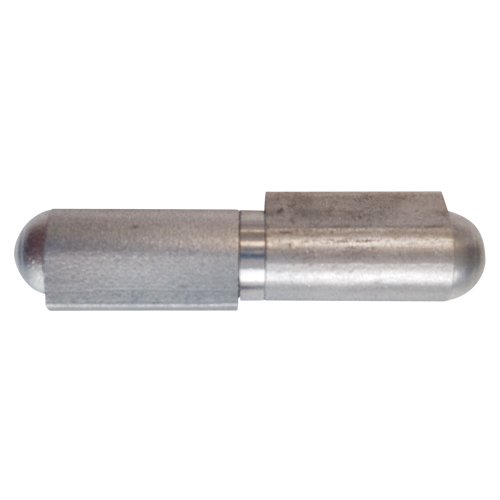

  • NMT Systems SS70SS Weld-On Hinge, 0.453" Dia. x 2.756" L, Stainless Steel w/Fixed Stainless Steel Pin

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

Discontinued

Related Products

Description

  • Ideal for gates, machinery doors, BBQ pits, electrical boxes, trailers and more
  • Can be painted to match the door and frame
  • Hinges are specially buffed and are free of burrs allowing for improved paint adherence
  • Comes standard with rounded ends and with/without grease fittings
  • Installation: Ensure the hinge is welded along the full length of the weld tab
  • Component replacement parts are available
  • Built to print solutions are available upon request

Specifications

Frame Material

Stainless Steel w/Fixed Stainless Steel Pin

Length

2.756"

Diameter

0.453"

Bushing Material

Stainless Steel

Pin Diameter

0.236"

Thickness

0.512"

Grease Fitting

Not Included
