Lincoln Electric

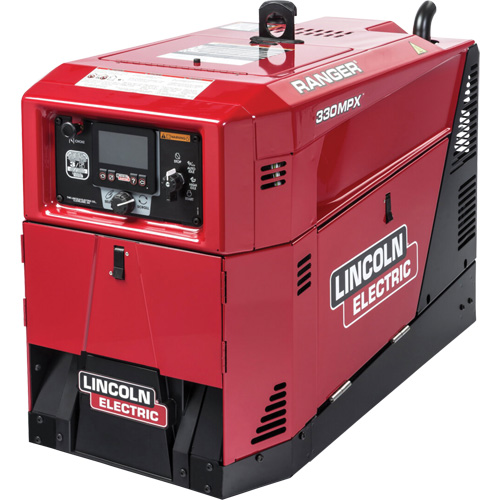

Ranger® 330MPX Welder/Generator Engine Drive (Kohler®)

Model: TTV725

Mfr. No.: K3459-1

See Product Details

  • Lincoln Electric K3459-1 Ranger® 330MPX Welder/Generator Engine Drive (Kohler®)

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$18,200.00 / Each

Ships in 7-10 days

Shipping times are based on information available at the time of order and are subject to change.

FREE delivery on all orders over $150 when shipping to an eligible location.

Buy More, Save More

Quantity Price per
2 or more $16,744.00

Related Products

Description

  • Premium welder/generator with excellent multi-process capability for stick, TIG, MIG, gouging, and pipe applications
  • Has a 20 percent smaller footprint and is 25 percent lighter than other machines in its class
  • It transports to the field with less bulk and less effort, leaving more room for other tools and accessories needed on your job site
  • Digital user interface offers a suite of advanced technology that improves weld performance and productivity
  • Up to 60% quieter than other machines in its class to enhance safety and comfort in the workplace
  • Ready.Set.Weld® technology' intuitive push-and-turn digital controls make setup a breeze
  • Chopper Technology® provides easy starts, a smooth and consistent arc, and low spatter for optimal bead appearance
  • ArcFX™ Technology provides instant graphical feedback on how settings affect the weld outcome
  • CrossLinc™ Remote Technology communicates voltage control to the welding power source through one common weld cable
  • Clean AC generator with 10 kW of continuous, consistent power to keep tools running without interruption
  • Plenty of power at 330A/28V for 100% duty cycle to weld 1/4" 7018 electrode
  • The maintenance screens allows the machine to record engine hours for proper service and maintenance
  • Enable the supervisor and operator passcode protection to lock settings and weld modes
  • Engine Driven Weld Modes include downhill pipe, touch-start pulse TIG, and pulse spool gun
  • Kohler® OHV Command CH740 2-cylinder air-cooled gasoline engine

Specifications

Dimensions

26"x 20"x 36 in

Net Weight

446 lbs (202 kg)

Machines Processes

Stick (SMAW), Gouging (CAC-A), TIG (GTAW), MIG (GMAW), Flux-Cored Self-Shielded (FCAW-S), Flux-Cored Gas-Shielded (FCAW-G)

IEC Rating

292A/31.7V/100% @ 104°F (40°C)

Max Rating

330A/28V/100% @ 104°F (40°C)

Output Range By Mode

CC-Stick: 35 – 330 A, Downhill Pipe (CC): 25-330 A, Touch Start TIG: 25 – 330 A, CV-Wire: 14 – 40 V, Arc Gouging: 90 – 330 A

Single Phase Auxiliary Output

10,000 Watts Continuous, 120/240V

Auxiliary Output Frequency

60 Hz

Rated Gouging Carbon Diameter

3/16"(5.0 mm)

UPC

015082847290
