JET

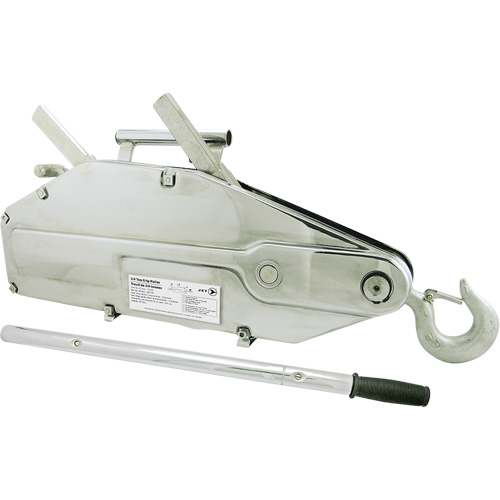

JGP-75A Sumo Series 3/4 Ton Grip Puller Without Cable

Model: NIS577

Mfr. No.: 111136

See Product Details

  • JET 111136 JGP-75A Sumo Series 3/4 Ton Grip Puller Without Cable

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$636.00 / Each

Ships in 3-6 days

Shipping times are based on information available at the time of order and are subject to change.


FREE delivery on all orders over $150 when shipping to an eligible location.

Buy More, Save More

Quantity Price per
2-3 $591.48
4 or more $534.24

Related Products


Description

  • Compact high strength steel housing
  • Lightweight, simple and safe to operate
  • May be used in any position to lift, pull, lower, or stretch heavy loads
  • The rope clamp system is easily disengaged with a lever, allowing smooth installation of the wire rope
  • Overload protection is built-in with a shear pin in the forward lever, which will break when overloaded
  • Design enables wire rope to be fed through 2 sets of wear resistant interlocking jaws by a single operating lever

For Use With

  • 5/16" ASA & IWRC Wire Rope

Specifications

Rated Lifting Capacity

3/4 Tons (1760 lbs.)

Rated Pulling Capacity

1.4 Tons (2860 lbs.)

Effort At Rated Load

64 lbs.

Operating Rope Advance

2.36"

Standard(s) Met

ANSI B30.21

Dimensions (L X W X H)

16-3/4" x 2-1/2" x 9"

Telescopic Handle Length

29"

Weight

35.27 lbs. (16 kg)

UPC

059629806043

Country Of Origin

China
