Tenaquip

Fluke

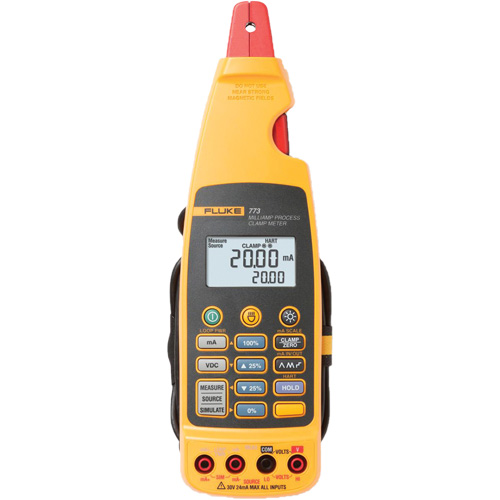

773 Milliamp Process Clamp Meter

Model: IB097

Mfr. No.: 773

See Product Details

  • Fluke 773 773 Milliamp Process Clamp Meter

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$2,659.99 / Each

Login for best possible pricing!

Ships in 5-8 weeks

Shipping times are based on information available at the time of order and are subject to change.

FREE delivery on all orders over $150 when shipping to an eligible location.

Related Products

Description

  • Loop calibrator that measures 4 to 20 mA signals without breaking the loop
  • Sources 4 to 20 mA signals for testing control system I/O or I/Ps
  • Measures DC voltage to verify 24 V power supplies or voltage I/O signals
  • Measures mA signals for PLC and control system analog I/O
  • Simultaneously measures the mA signal with the clamp and sources a mA signal
  • Features a detachable clamp with extension cable for measurements in tight locations
  • Captures and displays changing measurements with hold function
  • Offers mA output linear ramp or 25% step output
  • Extends battery life with auto-off and backlight timeout
  • Enables milliamp signal logging to a separate logging device without breaking the loop
  • Measurement spotlight to illuminate hard to see wires in dark enclosures
  • Measures 10 to 50 mA signals in older control systems using the 99.9 mA range
  • Automatically changes the 4 to 20 mA output for remote testing

Specifications

Display

Digital

Accuracy

0.2%

Resolution

0.01 mA

Sensitivity

0.01 mA

Max. Diameter Of Measurable Conductor

4.5 mm (0.177")

Operating Temperature

-10 - 50°C

IP Rating

IP40

Approvals

EN61326-1

UPC

095969475822

Manufacturer's Warranty

  • 3 Years (Electronics), 1 Year (Cable & Clamp Assembly)
