Fluke

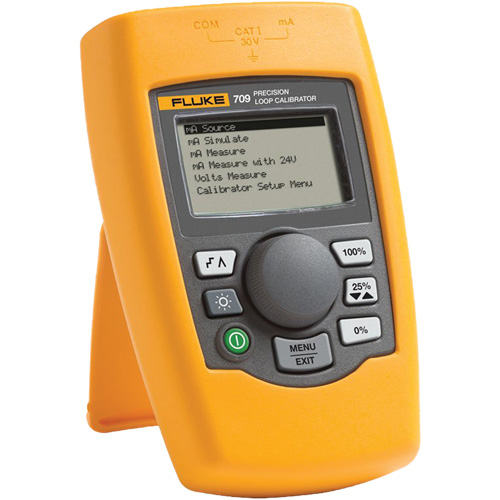

709 Loop Calibrator

Model: IB092

Mfr. No.: 709

See Product Details

  • Fluke 709 709 Loop Calibrator

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$1,964.19 / Each

Login for best possible pricing!

Ships in 5-8 weeks

Shipping times are based on information available at the time of order and are subject to change.

FREE delivery on all orders over $150 when shipping to an eligible location.

Related Products

Description

  • Intuitive user interface with quick-set rotary encoder knob for fast setup
  • Includes built-in selectable 250 Ω resistor for HART® communication
  • Features 24 V DC loop power with mA measure mode (-25% to 125%)
  • Requires only simple two wire connection for all measurements
  • Provides resolution of 1 µA on mA ranges and 1 mV on voltage ranges
  • Provides auto shutdown to conserve battery life (adjustable up to 30 minutes)
  • Offers variable step and ramp time in seconds
  • Provides adjustable span selection
  • Includes valve test functionality (simulates defined mA values with % keys)
  • Includes: (1) AC175 alligator clip set, (1) TL75 test leads, (1) Soft case, (6) AAA batteries, (1) Product manual CD-ROM

Specifications

Display

Digital

Current Range

0 - 24 mA

Voltage Range

0 - 30 V DC

Accuracy

0.01% ± 2 Counts

Loop Power

24 V DC

Over-Voltage Protection

240 V AC

Overload Current Protection

28 mA DC

Approvals

EN61326 Annex A (Portable Instruments)

Dimensions

15 x 9 x 3 cm (6 x 3.6 x 1.3")

Weight

0.3 kg (9.5 oz.)

UPC

095969643740
