Encon

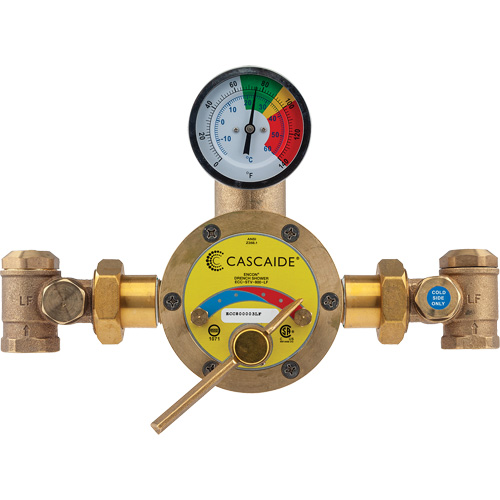

Mixing Valve for Exposed Assembly of Drench or Combination Emergency Shower, 56 GPM

Model: SGX711

Mfr. Model No.: ECC-STV-800-LF

See Product Details

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$2,432.00 / Each

Ships in 3-4 weeks

Shipping times are based on information available at the time of order and are subject to change.

FREE delivery on all orders over $99 when shipping to an eligible location.

Buy More, Save More

Quantity Price per
2 or more $1,994.24

Related Products

Description

  • Locking temperature regulator to prevent accidental movement set for 85°F (29°C)
  • Mixing valve will close down on failure of cold water supply
  • Mixing valve with special internal cold water bypass capable of 20 GPM (76 l/min) @ 30 PSI (2.1 Bar) upon failure of hot water supply
  • Adjustable high temperature limit stop * set for 90°F (32°C)
  • Full 1" top or bottom inlets and 1-1/4" top outlet
  • Integral wall support
  • Dial thermometer (range 0 to 140°F, -10 to 60°C)
  • Rough bronze finish
  • Union angle checkstops on inlets
  • A method to assist in achieving compliance to ANSI Z358.1

Specifications

Gallons Per Minute (GPM)

56 GPM

Minimum Gallons Per Minute

3 GPM

Maximum Supply Temperature

180°F (82°C)

Maximum Supply Pressure

125 PSI (8.6 Bar)
