Tenaquip

Electronic Specialties

Premium Automotive Digital Multimeter with Case

Model: FLV645

Mfr. No.: 597

See Product Details

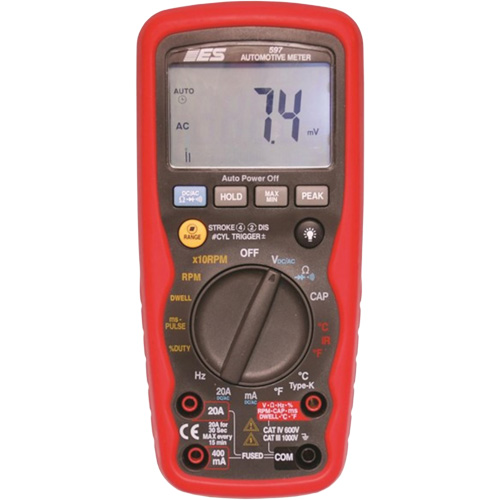

  • Electronic Specialties 597 Premium Automotive Digital Multimeter with Case

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$386.58 / Each

Ships in 2-3 weeks

Shipping times are based on information available at the time of order and are subject to change.

FREE delivery on all orders over $150 when shipping to an eligible location.

Buy More, Save More

Quantity Price per
2-3 $351.79
4 or more $305.40

Related Products

Description

  • CATIII 1000 Volt/CATIV 600 Volt approved and safety rated
  • Safe for use on hybrids and EV's
  • Highest quality auto-ranging digital multimeter designed for automotive trouble shooting
  • 18 Test functions, 48 test ranges
  • Peak Min/Max records transient voltages as fast as 1 millisecond
  • Min/Max mode records variations in all functions
  • Measures temperature via temperature probe in both F and C
  • Milliseconds Pulse Width measures fuel injector ON-TIME
  • Inductive RPM readings for both DIS and conventional ignitions
  • Desirable 20 Amp test range - dual fuse protection
  • Modern design, the protective holster is built into the housing
  • Data hold, auto power-off, and trigger adjust
  • Large LCD display with white LED backlighting and 40 segment analog bar graph
  • Waterproof to IP67 standards
  • Test functions: AC/DC Voltage, Resistance, AC/DC Current, Temp via Contact Probe F and C, RPM and (DIS) RPM, Milliseconds Pulse Width, Dwell (Direct), Frequency (Hz), Duty Cycle, Capacitance, Diode Test, Continuity

Includes

  • Blow Mold Case
  • Test Leads
  • K-Type Temp Probe
  • Inductive RPM Clamp
  • Instructions

Specifications

DC Volts

0-400mV, 4V, 40V, 400V, 600V

AC Volts

0-4V, 40V, 400V, 600V

DC Amps

0-40mA, 400mA, 20A

AC Amps

0-40mA, 400mA, 20A

Ohms

0-400, 4K, 40K, 400K, 4M, 40M

Capacitance

0-4nF, 40nF, 400nF, 4uF, 400uF, 4mF, 40mF

Frequency

0-2kHz, 40kHz, 400kHz, 40MHz

Duty Cycle

0.1% - 99.9%

UPC

855174001434

Country Of Origin

China
