BVA Hydraulics

General Hydraulic Cylinder, 5.08" Stroke, 5 Ton(s) Capacity, 10000 PSI

Model: FLU691

Mfr. No.: H0505

See Product Details

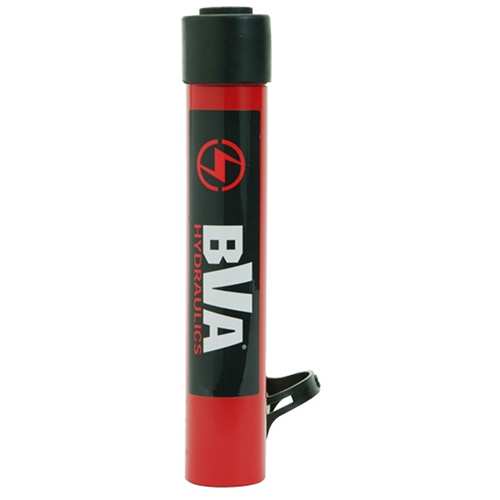

  • BVA Hydraulics H0505 General Hydraulic Cylinder, 5.08" Stroke, 5 Ton(s) Capacity, 10000 PSI

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$745.00

$878.00

/ Each

15% Off Promo Ends 03/31/2026

Ships in 2-3 weeks

Shipping times are based on information available at the time of order and are subject to change.

FREE delivery on all orders over $150 when shipping to an eligible location.

Related Products

Description

  • BVA Hydraulics General Cylinder works at max. 10000 psi (700 bar), manufactured in a solid one-piece alloy steel body, using polyurethane U-cup seals to provide a sure seal and longer life
  • Standard hard chrome plated piston rod protects against corrosion and damage; one-piece aluminum alloy bearing protects against cylinder wall damage
  • Collar threads and base mounting holes are for fixturing
  • All BVA cylinders come equipped with CH38F high-flow coupler with a dust cap for better protection

Specifications

Capacity

5 Ton(s)

Collapsed Height

8-7/10"

Extended Height

13-39/50"

Operating Pressure

10000 PSI

Stroke Length

5.08"

Material

Steel

Oil Usage (Push)

83.25 CC

Cylinder Bore

1.13"

Outside Diameter

1.5"

Rod Diameter

1"

Saddle Diameter

0.98"

Collar Thread

1-1/2"-16

Collar Thread Length

1.1"

Rod Internal Thread

3/4"-16UNF

UPC

047077510032

Country Of Origin

Taiwan
