Tenaquip

BVA Hydraulics

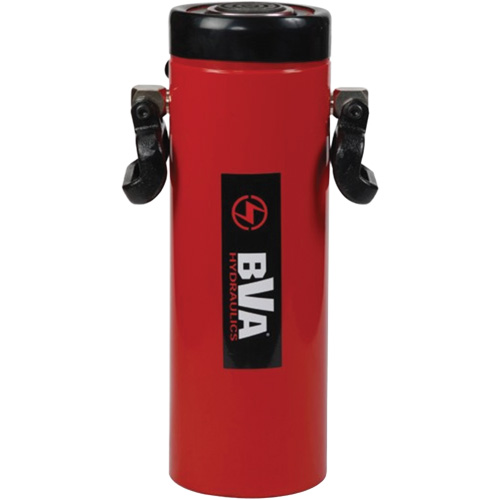

General Hydraulic Cylinder, 13.11" Stroke, 100 Ton(s) Capacity, 10000 PSI

Model: FLV060

Mfr. No.: HD10013

See Product Details

  • BVA Hydraulics HD10013 General Hydraulic Cylinder, 13.11" Stroke, 100 Ton(s) Capacity, 10000 PSI

Colour, sizing or style depicted in some photos may not be exactly as described.
Please check your product description carefully before placing your order.

$8,031.00 / Each

Ships in 2-3 weeks

Shipping times are based on information available at the time of order and are subject to change.

FREE delivery on all orders over $150 when shipping to an eligible location.

Buy More, Save More

Quantity Price per
2 or more $7,549.14

Related Products

Description

  • Constructed in high strength steel from gun drilled solid bar, using high grade alloy bearing for side load protection to provide longer service life, and the rod wiper seals out dirt and contamination
  • Ideal for pushing and pulling application, retract under hydraulic power for faster operation
  • Equipped with a CH38F high flow coupler with dust cap

Specifications

Capacity

100 Ton(s)

Collapsed Height

20-63/100"

Extended Height

33-37/50"

Operating Pressure

10000 PSI

Stroke Length

13.11"

Material

Steel

Cylinder Bore Size

5.12"

Outside Diameter

6.97"

Rod Diameter

3.75"

Saddle Diameter

2.95"

Collar Thread

6-7/8”-12

Collar Thread Length

1.97"

Rod Internal Thread

1-3/4”-12

Rod Thread Length

1.38"

UPC

047077571095

Country Of Origin

Taiwan
